100 Ton Conventional Welding Rotator

Name: 100 Ton Conventional Welding Rotator
Brand: WELDSUCCESS
Price: 1 USD

100 Ton Conventional Welding Rotator Manufactures

Brand Name : WELDSUCCESS

Model Number : CR-100

Certification : ISO / CE / CO

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C, D/A

Supply Ability : 1 Sets Per Month

Delivery Time : 2 week

Packaging Details : Wooden Case

Turning Capacity : 100 Ton maximum

Drive Load Capacity : 50 Ton maximum

Idler Load Capacity : 50 Ton maximum

Adjust Way : Bolt Adjustment

Motor Power : 2*3 KW

Vessel Diameter : 800-5000mm

Rotation Speed : 100-1000mm/min

Voltage : 380 V ±10 % 50 Hz 3 Phase

Roller Wheels : PU or Steel or Rubber available

Contact Now

Turning rolls make it easy to rotate cylindrical containers during welding and fabrication, resulting in higher quality and more efficient production. Our heavy-duty, built-to-last conventional turning rolls are designed and manufactured to tolerate the hardest, hard-wearing and unrelenting workload environments. The powered drive units are controlled by a five-function pendant with a variable speed potentiometer, giving the operator complete control of the rotating vessel.

100 Ton Conventional Welding Rotator

Product Tags:

Plate Bending Machine

roll bending machine

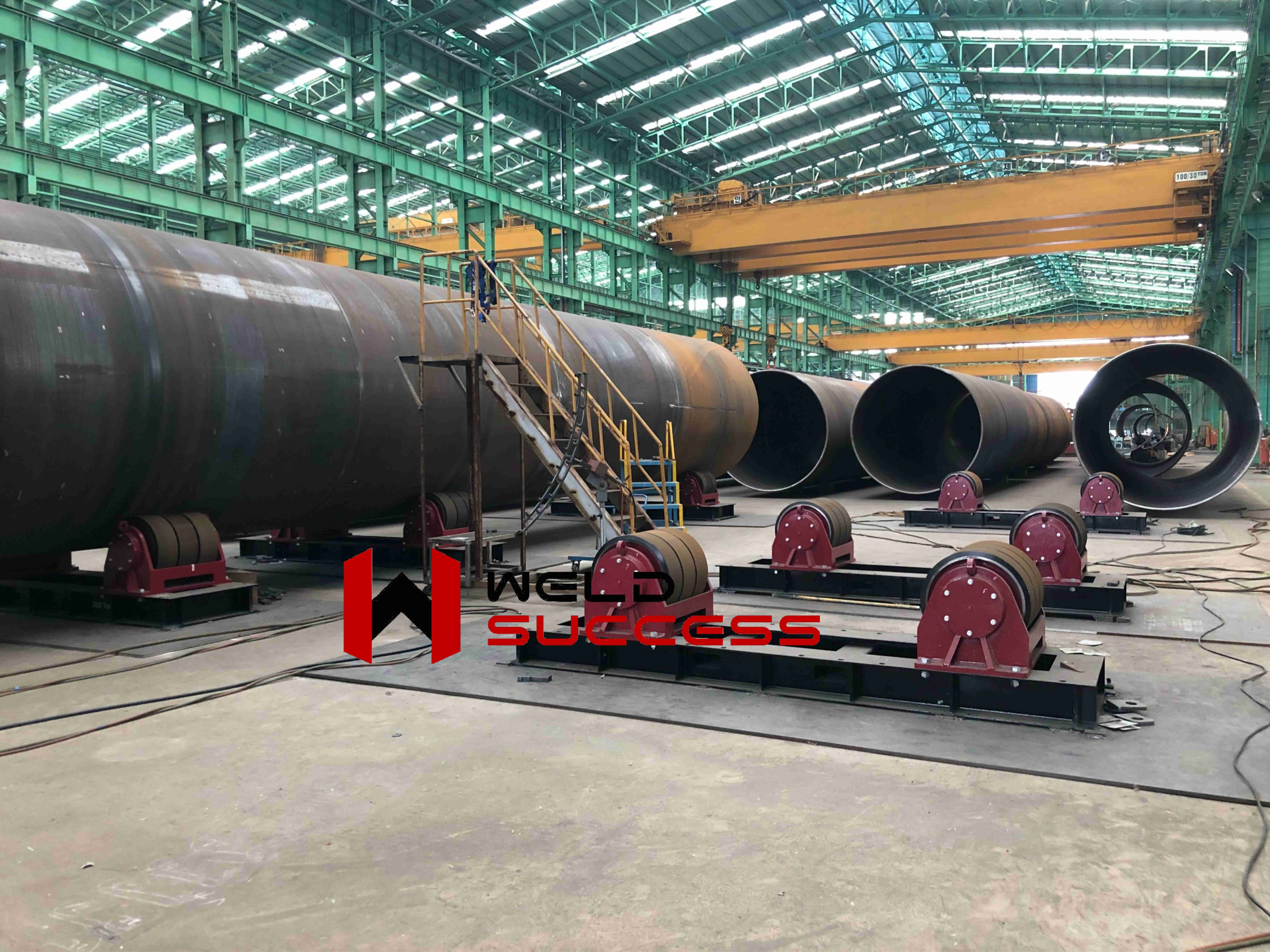

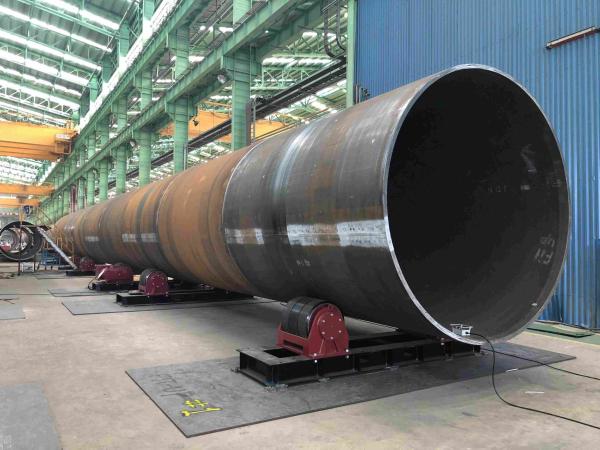

100 Ton Conventional Welding Rotator Images
