1200kg Automatic Rotary Pipe Welding Positioner,

Name: 1200kg Automatic Rotary Pipe Welding Positioner
Brand: Weldsuccess
Price: 1 USD

1200kg Automatic Rotary Pipe Welding Positioner, Manufactures

Brand Name : Weldsuccess

Model Number : HBJ - 12

Certification : ISO/CE/CO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : TT / 30 % payment in advance

Supply Ability : 5 sets per month

Delivery Time : 20 working days after received your payment

Packaging Details : Packed in wooden case / Container

Max Capacity : 1200 kg

Name : Pipe Welding Positioner

Type : Automatic Positioner

Feature : Speed Digital Readout

Worktable Diameter : 1400mm

Tilting Angle : 0~120°

Application : Automatic Welding

Control Way : Hand Control & Foot Pedal

Contact Now

1200kg Rotary Pipe Welding Positioner,Automatic Positioner With Speed Digital Readout,CE Supported

Description

1. The worktable could be rotating 360°and tilting 90°to allow work piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.

3. Can help for all types of manual welding and auto-welding.

4. Controlled by step-less frequency conversion.

5. If work piece is longer or irregular shape, larger specification is more suitable due to eccentricity and gravity center.

1200kg Automatic Rotary Pipe Welding Positioner,

Specifications

Model	HBJ-03	HBJ-06	HBJ-12	HBJ-30	HBJ-50
Max Capacity	300 kg	600 kg	1.2 T	3 T	5 T
Table Diameter (mm)	600	1000	1200	1400	1500
Rotation Power (kw)	0.37	0.75	1.1	1.5	3
Rotation Speed (rpm)	0.1-1	0.09-0.9	0.05-0.5
Tilting Power (kw)	/	0.75	1.5	2.2	3
Tilting Angle (°)	0-90	0-90	0-90	0-90	0-90
Tilting Speed (kw)	Manual	1.1	0.67	0.23	0.14
Option:	□ Foot Pedal □ Wireless Control □ Tilting Angle 120°

Competitive Advantage

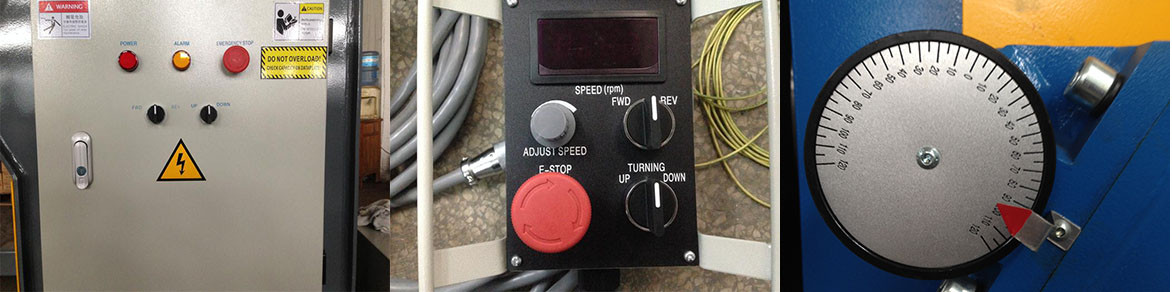

1. It’s easy to control with electric cabinet and hand control panel

2. Sand blasting treatment to main welding parts before painting
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands

Clamps for reference

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Special clamps can be designed according to your work piece detail drawings.

1200kg Automatic Rotary Pipe Welding Positioner,

Certificate and Company Work Shop

1. All our equipments have passed CE test and get the CE certificates. So it's ok to export the European.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

3. If want door to door price, please advise us your detail adress.

Installation

1. Fully installated then packaged in wooden case.

2. Engineers door to door service available.

SO JUST SEND YOUR INQUIRY NOW.
