Column And Boom Welding Manipulator ,Tank / Pressure Vessels Seam Welding
Seam Welding Manipulators
1. Structure:Fixed ,Fixed with Rotation and Movable with Rotation.
2. Equipment is cold-blended and go through annealing treatment.
3. There is anti-failing device to ensure the safety of boom lifting.
4. Boom retracting adopts VFD,being stable and reliable.
5. X-Y slide is fixed on one end of boom, controlled by hand panel.
6. SAW / TIG welding are all available.
Specifications
| Model | LHC-3030 | LHC-3040 | LHC-4050 | LHC-5060 |
| Effective Vertical Lifting Stroke of Boom (mm) | 3000 | 3000 | 4000 | 5000 |
| Effective Horizontal Retracting Stroke of Boom (mm) | 3000 | 4000 | 5000 | 6000 |
| Boom Lifting speed (mm/min) | 1 |
| Boom Retracting speed (mm/min) | 0.12-1.2 |
| Column Rotation Angle (°) | □ Stationary □ ±180° |
| Column Rotation Way (rpm) | □ Stationary □ Manual □ Motorized(0.1) |
| Trolley Traveling Way (mm/min) | □ Stationary □ Manual □ Motorized(1.5/3) |
| Option : | □ Seam Tracker □ Flux recovery machine |
| Welding Source □ Chinese □ Lincoln Brand |
Feature:

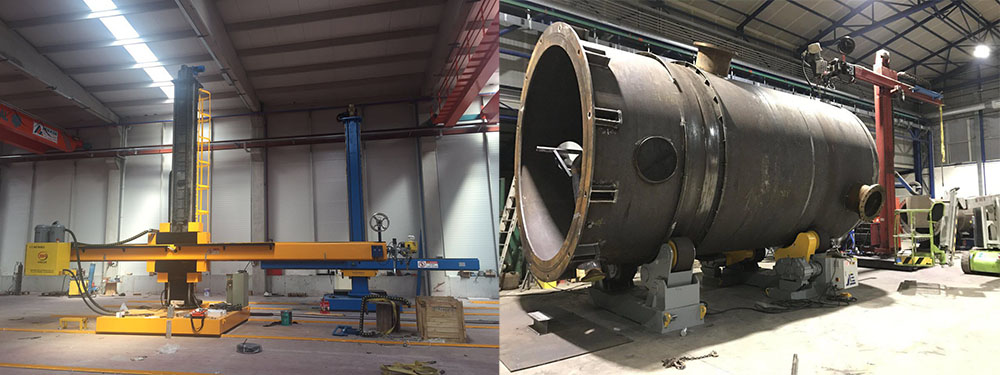

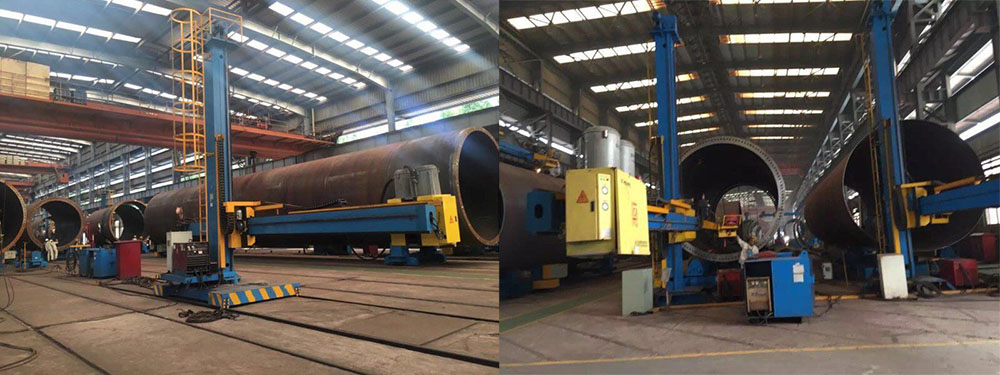

1. Welding manipulators are the automatic welding equipment composed together with welding power.
2. It can be used together with welding rotators or welding positioners,and widely used in industries
as boiler, pressure vessel, petro chemical machinery for welding of inner and outer longitudinal seams
and circumferential seams.
3. It features in advanced structure complete function easy operation to make sure of welding quality.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. Our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.
Competitive Advantage:
1. With lubrication system.
2. Motor is UK brand Invertek.
3. VFD rotary speed control, improving the reliability of operation.
4. Inverter and Main electric elements are Siemens/Schneider or equal brand.
5. Accept testing before delivery.
6. Accept special design and custom.
When you send us the inquiry, please advise us your single tank diameter and length.
NOW PLEASE SENS US YOUR INQUIRY.
Product Tags:
|
|

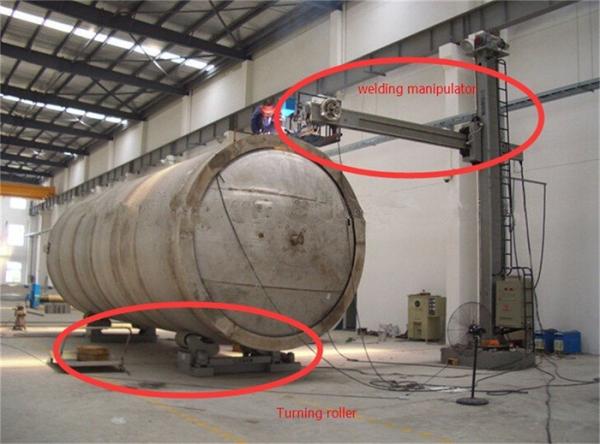

Column And Boom Pipe Welding Manipulator Images
|
