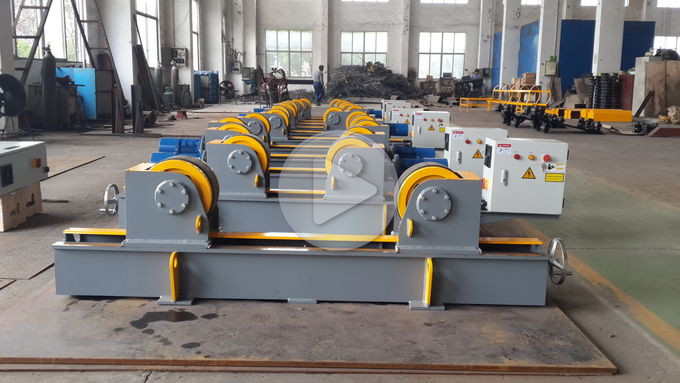

Automatic Lead Screw Conventional Heavy Duty Pipe Welding Rotator Stands For Tank Turning Welding More products pics.pdf
Pipe Welding Rotator / Tank Turning Rollers Description
1. Package : One powered roller / one idler roller / Electric Control System
2. Pipe welding rotator voltage : 110V - 600V 50 / 60 Hz 1P / 3P
3. Roller : Rubber / Steel / PU (Polyurethane)
4. Original : Wuxi Success Machinery Equipment Co., Ltd / Lead Screw Welding Rotators
5. Condition : New / Fully CE supported
Pipe Weldig Rotator Specification
| Model | HGK - 5 | HGK - 10 | HGK - 20 | HGK - 30 | HGK - 40 |
| Max Capacity | 5 T | 10 T | 20 T | 30 T | 40 T |
| Roller Diameter (mm) | 250 | 300 | 350 | 350 | 400 |
| Roller Width (mm) | 140 | 170 | 180 | 180 | 200 |
| Working Range (mm) | 250-2800 | 300-3200 | 500-4500 | 500-4500 | 500-4800 |
| Roller Speed (mm/min) | 1 - 1000 |
| Motor Power (kw) | 2 * 0.37 | 2 * 0.55 | 2 * 1.1 | 2 * 1.5 | 2 * 1.5 |
| Option : | □ Bolt Adjustment □ Lead Screw Adjustment |
Other Types Option
1. We also supply the self-alignment Pipe Welding Rotator, the vehicle used, the tilting and the anti-drift types.
2. Bolt adjustable pipe welding rotator can adjust the center distance by reserved screw holes. So as to adapt to various diameter work piece.
3. Lead screw adjustable pipe welding rotator is also available.
4. The roller is mainly used for welding & assembling of pressure vessel.
5. Shot blasting used, painting used pipe welding rotator is also available.
6. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.
Details Parts Brand On Our Pipe Welding Rotator
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor
3. Cable / Shuntian Reducer
4. Schneider / Siemens electric system
5. All equipments with fully CE certificates.
Transportation
1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the most suitable approach.
After Sale Service For Pipe Welding Rotator
1. We provide 12month guaranty period for the whole machine quality.
2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
