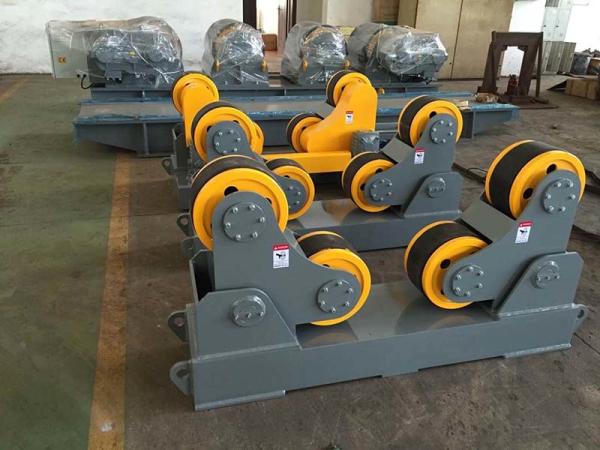

12,000 lbs Constant Center Line Vessel Tank Turning Rollers For Thin Wall Vessels
1. With Remote Pendant Control.
2. Variable Speed from 1 to 1000 mm / min.
3. Ready to Ship Tank and Pipe Turning Rolls Used for Welding Fabrication in the Shop or Field.
Description
1. It will adjust the tank diameters automatically.
2. Wireless control is more convenient than remote control cable.
3. Can make work piece at optimum welding position (turning roll).
4. Low noise transmission and stable turning roller during working.
Delivery Package
1. One set powered / One set idler / Electric control system
2. Voltage : 380V 50Hz 3P
3. Control Way : Remote Control Box / Foot Pedal

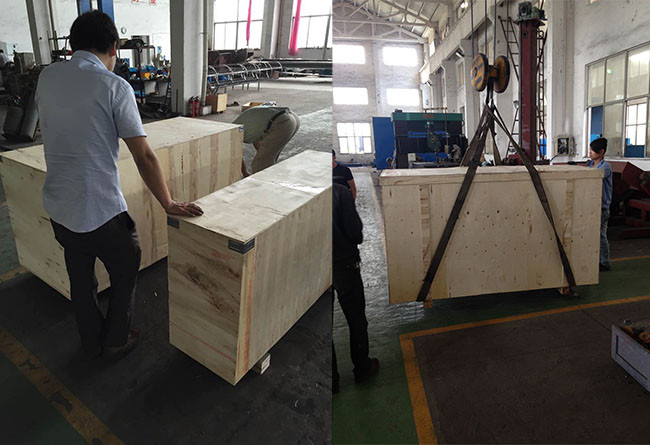

4. Package Way : Wooden Case
5. Working Manual
Specification
| Model | HGZ-5 | HGZ-10 | HGZ-20 | HGZ-30 | HGZ-40 |
| Max Capacity | 5 T | 10 T | 20 T | 30 T | 40 T |
| Roller Diameter (mm) | 250 | 300 | 350 | 350 | 400 |
| Roller Width (mm) | 100 | 120 |
| Working Range (mm) | 250-2300 | 320-2800 | 500-3500 | 530-3700 | 600-4200 |
| Roller Speed (m/h) | 6-60 |
| Motor Power (kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
| Option : | □ Moving wheels □ Wireless Control □ Remote Control |
Applications
1. Several single pipes butting welding.
2. SAW / TIG welding are all supported.
3. We also supply the flux recovery machine.
Details Control system and Brand
1. Inverter is from Taida/Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider / Siemens
FAQ
Q: Can your machine or other products be customized?
A: yes,we are an professional manufacturer who specializes in welding equipment about 15 years,
we have a strong design team ,so any conventional products can be customized.
Q: What about the transportion?
A: Usually we take seaway ,cause its more convenient and cheaper for big machine,of course ,
if it is allowed ,we also can take train ,its according to real condition.
Attention please
1. All our pipe welding rotators have 20% over weight design, but we suggest used on the safe rangs.
2. We have strong delivery team, including the Sea freight and Air transportation.
3. Just advise me your desitination port then we will give you the final CIF price.
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
