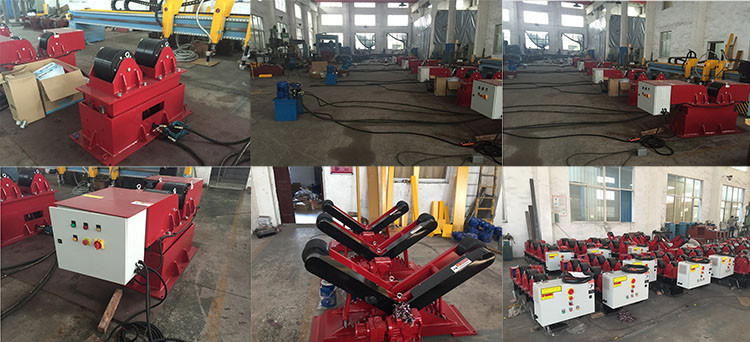

15 T Hydrulic Lifting Bolt Adjustment Pipe Welding Roller Stands , CE Tank Turning Rolls
Tank Turning Rolls Description
1. Hydraulic lifting tank turning rolls can adjust the pipe height to make sure on the same horizontal.
2. If you work outside and worry about the foundation sink, then just choose this model.
3. The favourable price performance ratio yields will ensure a quick payback of your investment.
4. We also provide tailor-made tank turning rolls according to your special requirements.
Hydraulic Type Tank Turning Rolls Specification
| Model | HGK - 5 | HGK - 10 | HGK - 20 | HGK - 30 | HGK - 40 |
| Max Capacity | 5 T | 10 T | 20 T | 30 T | 40 T |
| Roller Diameter (mm) | 250 | 300 | 350 | 350 | 400 |
| Roller Width (mm) | 140 | 170 | 180 | 180 | 200 |
| Working Range (mm) | 250-2800 | 300-3200 | 500-4500 | 500-4500 | 500-4800 |
| Roller Speed (mm/min) | 1 - 1000 |
| Motor Power (kw) | 2 * 0.37 | 2 * 0.55 | 2 * 1.1 | 2 * 1.5 | 2 * 1.5 |
| Option : | □ Bolt Adjustment □ Lead Screw Adjustment |
Other types option
1. We also supply the self-alignment, the vehicle used, the tilting and the anti-drift types tank turning rolls.
2. Bolt adjustable tank turning rolls can adjust the center distance by reserved screw holes.
3. Lead screw adjustment tank turning rolls is also available.
4. The roller is mainly used for welding & assembling of pressure vessel.
5. Shot blasting used, painting used tank turning rolls is also available.
6. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.
Tank Turning Rolls Details Parts Brand
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor
3. Cable / Shuntian Reducer
4. Schneider / Siemens electric system
5. Voltage is 380V 50Hz 3P , or reset as your required
Transportation
1. Firstly , all of tank turning rolls will be packaged in wooden case before delivery.
2. Door to door delivery service is also available , but we have to know your detail address.
3. Seaway is the most common transportation way for oversea trading for tank turning rolls.
4. Depends on your location, combined transport by rail and sea is also an option.
5. Certainly railway transportation is also acceptable if it is the most suitable approach.
After sale service
1. We provide 12month guaranty period for the whole machine quality.
2. During this time, any issue proved because of the machine flaw itself,we would take responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
Installation
1. Normally the pipe tank turning rolls shipped with fully installation.
2. It's easy to installate via our detail drawings supported.
3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.
PLEASE SNED US YOUR INQUIRY FOR VIDEO NOW.
