Conventional Tank Turning Rolls With 100 Ton Capacity , Tank Diameter 500-8000 Ranges More products pics.pdf
Original manufacturer: Wuxi Success Machinery Equipment Co., Ltd

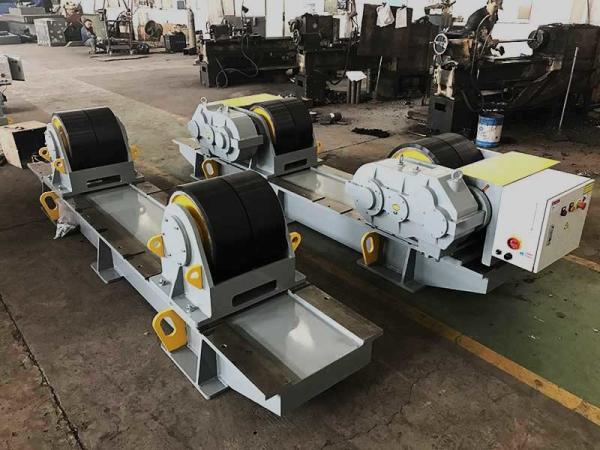

1. Consist of drive roller, idler roller and electric system etc.
2. Tank diameter 800~5000 mm working ranges.
3. Turning speed with digital readout on hand control box.
4. All the equipments passed CE test and get the CE certificates.
5. Voltage 220V - 600 V all available.
Detail Parameters
| Model | HGK-60 | HGK-100 | HGK-200 | HGK-300 | HGK-500 |
| Max Capacity | 60 T | 100 T | 200 T | 300 T | 500 T |
| Roller Diameter (mm) | 450 | 500 | 700 | 800 | 900 |
| Roller Width (mm) | 220 | 280 | 300 |
| Working Range (mm) | 800-5000 | 1000-6000 | 1000-8000 |
| Roller Speed (mm/min) | 1-1000 |
| Motor Power (kw) | 2*2.2 | 2*3 | 2*4 | 2*5.5 | 2*7.5 |
| Option : | □ Bolt Adjustment □ Lead Screw Adjustment |
Competitive Advantage
1. The upper surface of pedestal is fine machined, both side of which has adjusting bolt holes.
2. It is the frame structure, scientific and reliable design.
3. Every motion part for equipment has the full lubricating system.
4. Double motors to ensure turing stably.
5. With One year Warranty.
Details parts brand
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor with fully CE certificates
3. Cable / Shuntian Reducer is made in China
4. Schneider / Siemens electric system
5. Voltage is 380V 50Hz 3P , or reset as your required
6. All the equipments with one year warranty
Transportation

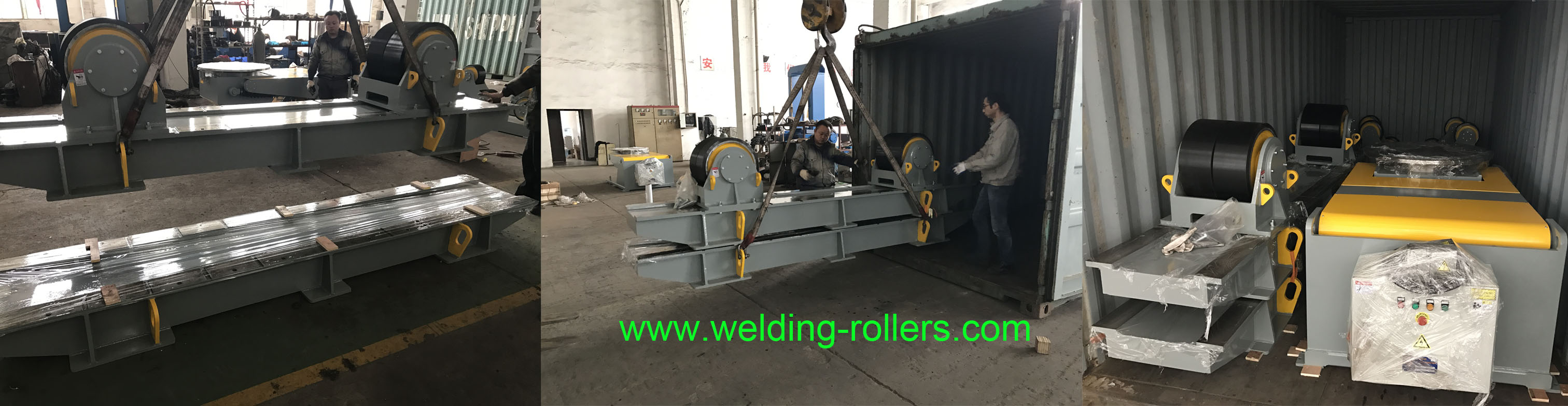

1. Firstly , all of our equipments will be packaged in wooden case before delivery.
2. Door to door delivery service is also available , but we have to know your detail address.
3. Seaway is the most common transportation way for oversea trading.
4. Depends on your location, combined transport by rail and sea is also an option.
5. Certainly railway transportation is also acceptable if it is the most suitable approach.
After sale service
1. We provide 12month guaranty period for the whole machine quality.
2. During this time, any issue proved because of the machine flaw itself,we would take responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
Installation
1. Normally the tank turning rolls shipped with fully installation packaged in wooden case.
2. It's easy to installate via our detail drawings supported.
3. We also have engineers supply door to door installation service.
4. We also supply the door to door delivery service if customers interested.
PLEASE SNED US YOUR INQUIRY FOR MORE INFO NOW.
