20T Wind Tower And Oil Pipe Welding Rollers , Yellow Color Welding Pipe Stands
WELDSUCCESS PRODUCTS.pdf
Self-aligning/self centering type. This type welding rotators are used for the rotation and positioning of heavy workpieces, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.
20T Self-aligning Conventional Welding Turning Rolls Brif Description:
- One drive & one idler packaged together.
- Remote hand control & foot pedal control.
- Bolt adjustment for different diameter vessels.
- Stepless adjustable speed of the driven part.
- Drive rotation speed in digital readout.
- Top-class electronic components from Schneider.
- 100% new from original manufacturer
- CE marking
Pipe Welding Roll Usage:
1. Medium range series has been engineered for the effective positioning of long cylindrical work-pieces.
2.If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.

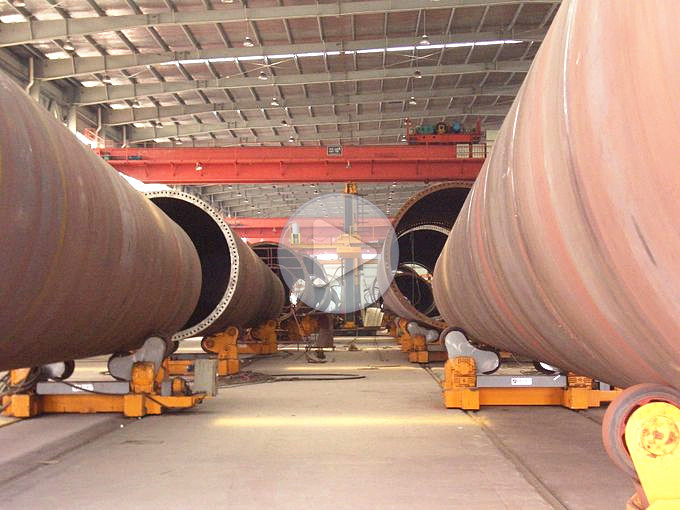

3. application:Oil tanks, pressure vessels, Wind power fabrication,Chemical & fuel storage tank fabrication.
4. Long objects that are not cylindrical may be adapted with the aid of custom designed support rings.
Here Below is 20T Pressure Vessels Welding Rotator Specification:
| Model | HGZ-20 |
| Load capacity - Drive | 10 tons maximum |
| Load capacity - Idler | 10 tons maximum |
| Load capacity - Set | 20 tons maximum |
| Rotation capacity | 20 tons maximum |
| Vessels diameter | Min. 500mm ~ Max.3500mm |
| Rotation speed | 100~1000 mm/min VFD |
| Rotation power | 1.5kw with fan cooling |
| Roller wheels | PU (Polyurethane wheels) |
| Control way | Remote hand control + Foot pedal |
| Input Voltage | 110V ~ 575V Single/3 Phase 50/60Hz |
More Questions Customers May Concerned On Our Pipe Rollers:
Q1: What about the transportion?
A : 1. Fully packaged in wooden case to anti damage during the transportational process .
2. Usually we take seaway ,cause its more convenient and cheaper for big machine.
3. Door to door delivery service is also available.
Q2 : What is your warranty and after sale service ?
A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.
2. If you have any questions on the installation , you will get our engineers respond within 24 hours.
Q3: Can I come to your factory to check and accept before shipment?
A: Yes, we will inform you the inspection schedule.
Q4: Can your machine or other products be customized?
A yes, we are a professional manufacturer specializes in welding equipments about 15 years. We have a strong design team to meet requirements of customers.
Our Self-aligning Pipe Welding Rollers Machine Advantages:
- Our pipe rollers Inverter is from Danfoss / Yaskawa
- Our self aligning rotators Motor is from Invertek
- Our Tank rolls Reducer is from China brand
- Our welding rotators Electric system is from Schneider
Video:
PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
