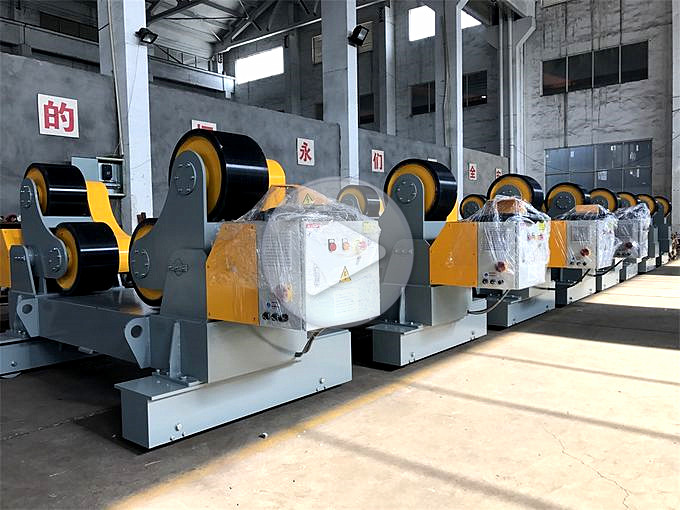

Wuxi Pipe Welding Rotator , 40T Self Aligning Welding Rotator For Tank Welding
More info.pdf
Pipe Welding Rotator Features
1) Simple structure ,easy in installation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
Supply Ranges
1. Pipe Welding Rotator Consist : One powered roller , One idler roller , Electric control system
2. Adjust way : Adjust the pipe diameter automatically with diameter 530 - 3700 mm
3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available
4. Control Way : Remote hand control box / Wireless hand control box
5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )
6. Original : Wuxi Success Machinery Equipment Co Ltd / Wuxi Pipe Welding Rotator
Pipe Welding Rotator Specification
| Model | HGZ-5 | HGZ-10 | HGZ-20 | HGZ-30 | HGZ-40 |
| Max Capacity | 5 T | 10 T | 20 T | 30 T | 40 T |
| Roller Diameter (mm) | 250 | 300 | 350 | 350 | 400 |
| Roller Width (mm) | 100 | 120 |
| Working Range (mm) | 250-2300 | 320-2800 | 500-3500 | 530-3700 | 600-4200 |
| Roller Speed (m/h) | 6-60 |
| Motor Power (kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
Pipe Welding Rotator Working Site Request
1. Maximum temperature 40℃
2. Minimum temperature 0℃
3. Air relative humidity is not more than 80%
4. No serious harm or affect the normal use of the turning rolls explosive or corrosive industrial gases, water vapor, salt spray and chemical sediments
5. Power requirement: 3 phase, AC380 V, 50Hz or Customized
6. Voltage fluctuation: voltage fluctuation (frequency is rating) ≤10%
7. Frequency fluctuation: frequency fluctuation (voltage is rating) ≤2%
Pipe Welding Rotator Spare Parts
1. Inverter is from Taida / Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
Service
1. Send details info of your tank (like weight,diameter,single length and total length) to Jason Qian below.
2. Discuss together will ensure you choose the reasonable pipe welding rotator for your tanks welding.
3. Other request on the automation welding equipment please discuss with us.
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
