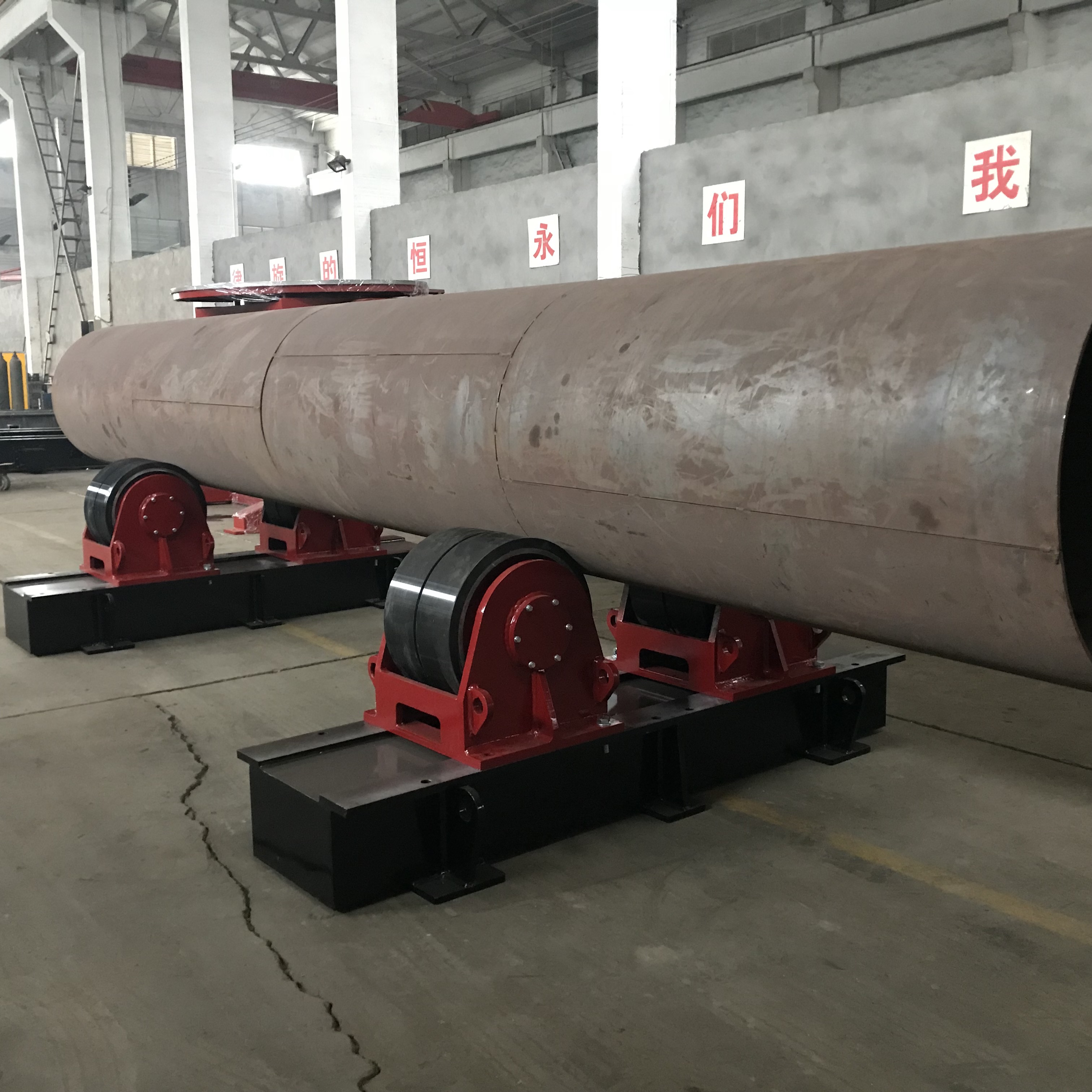

10T Automatic Conventional Pipe Welding Rollers For Welding , Wind Tower Tank Turning Rolls
More info.pdf
The series conventional pipe welding rollers stand is able to adopt to various diameter of job, by adjust the center distance of rollers, via reserved screw holes or lead screw.
Bolt Adjustment Conventional Pipe Welding Rollers Description
1. Our pipe welding rollers pack One drive piece roller & one idler piece roller together as one set for sale.
2.Remote hand control, Radio hand control & Foot pedal control are all avaialble.
3.Top-class electronic components from Schneider to ensure long time using life.
4.Our tank tuning rolls' drive rotation speed is in digital readout.
5.100% new from original manufacturer – WUXI SUCCESS MACHINERY EQUIPMENT CO., LTD.
6. If your single pipe length more than 8 meter, we suggest you choose one drive roller and two idler rollers to support.
7. HGK series Motorized travel conventional welding rotator can be supplied with a capacity from 5000 kg up to 1200 Tons
Pipe Welding Rollers Specification
| Model | CR-10 |
| Load capacity - Drive | 5 tons maximum |
| Load capacity - Idler | 5 tons maximum |
| Load capacity - Set | 10 tons maximum |
| Rotation capacity | 10 tons maximum |
| Vessels diameter | Min. 300mm ~ Max.3200mm |
| Rotation speed | 100~1000 mm/min VFD |
| Rotation power | 2*0.55kw with fan cooling |
| Roller wheels | PU (Polyurethane wheels) |
| Control way | Remote hand control + Foot pedal |
| Input Voltage | 110V ~ 575V Single/3 Phase 50/60Hz |
| Certificate | CE approval |
Bolt Adjustment Pipe Welding Rollers Competitive Advantage:
- Our pipe welding rotator Motor is from Invertek
|
- Our tank turning rolls Reducer is from China brand
|
- Our pipe welding rollers Inverter is from Danfoss / Yaskawa
|
- Our welding Electric system is from Schneider
|
Installation service
1. If only pipe welding rollers, will be very easy installation by yourself according to our work manual.
2. During the installation,if have any problems we can give you a timely help online.
3. Installation service at your site also available.We can arrange our engineer there.
4. Here below is 5x5 Column Boom and Self aligning welding rotator installation by our customer himself.
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
