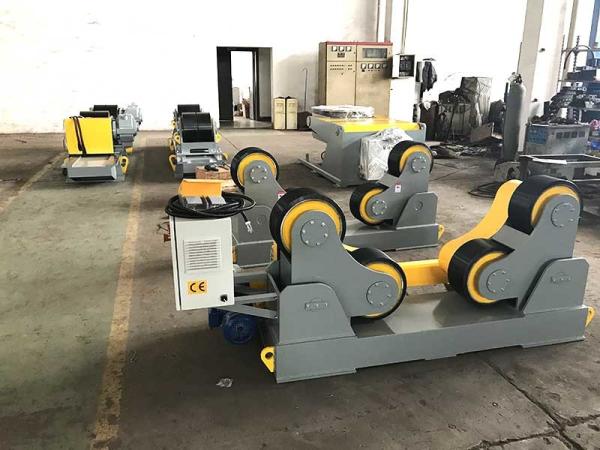

10T Self Aligning Pipe Welding Rollers / Tank Turning Rolls PU Wheel For Pressure Vessel Production
The self aligned pipe welding rollers are available in 5ton to 300 ton capacity.
Pipe Welding Rollers Description
1. Our pipe welding rollers pack One drive piece roller & one idler piece roller together as one set for sale.
2.Remote hand control, Radio hand control & Foot pedal control are all avaialble.
3.Top-class electronic components from Schneider to ensure long time using life.
4.Our tank tuning rolls' drive rotation speed is in digital readout.
5.100% new from original manufacturer – WUXI SUCCESS MACHINERY EQUIPMENT CO., LTD.
6. If your single pipe length more than 8 meter, we suggest you choose one drive roller and two idler rollers to support.
Pipe Welding Rollers Specification
| Model | HGZ-10 |
| Load capacity - Drive | 5 tons maximum |
| Load capacity - Idler | 5 tons maximum |
| Load capacity - Set | 10 tons maximum |
| Rotation capacity | 10 tons maximum |
| Vessels diameter | Min. 320mm ~ Max.2800mm |
| Rotation speed | 100~1000 mm/min VFD |
| Rotation power | 1.1kw with fan cooling |
| Roller wheels | PU (Polyurethane wheels) |
| Control way | Remote hand control + Foot pedal |
| Input Voltage | 110V ~ 575V Single/3 Phase 50/60Hz |
| Certificate | CE approval |
Other Types Option
1. We also supply the self-alignment, the vehicle used, the tilting and the anti-drift types.
2. Bolt adjustable Pipe Welding Rollers, Tank Turning Rolls can adjust the center distance by reserved screw holes. So as to adapt to various diameter work piece.
3. Lead screw adjustable Pipe Welding Rollers is also available.
4. The roller is mainly used for welding & assembling of pressure vessel.
5. Shot blasting used, painting used tank turning roll is also available.
6. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.
Installation
1. Normally the Pipe Welding Rollers shipped with fully installation.
2. It's easy to installate via our detail drawings supported.
3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.
Details Parts Brand On Our Pipe Welding Rollers
| Our pipe welding roller Inverter is from Danfoss / Yaskawa |
| Our welding rotator Motor is from Invertek |
| Our Tank rolls Reducer is from China brand |
| Our Tank rolls Reducer is from China brand |
PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
