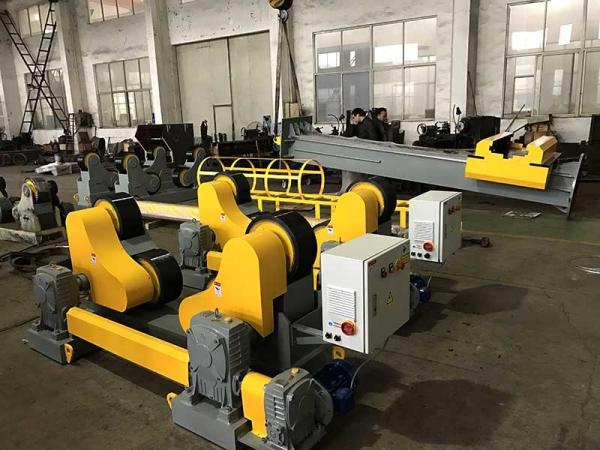

Batch Production 20T Self Aligning Welding Rotator With Control Cabinet , 20T Pipe Welding Rollers
Description of self aligning pipe welding rollers
1. It will adjust the tank diameters automatically.
2. Wireless control is more convenient than remote control cable.
3. Working range can be designed according to your tank diameter.
4. Low noise transmission and stable turning roller during working.
Delivery Package Range
1. One set powered / One set idler / Electric control system
2. Voltage : 380V 50Hz 3P
3. Control Way : Remote Control Box / Foot Pedal
4. Package Way : Wooden Case
5. Working Manual
Technical Data
| Model No. | Max loading | Motor power | Linear guide | Roller material | Working Range |
| HGZ-20 | 20T | 1.5 KW | 6-60m/h | Rubber | 320-3500mm |
Applications
- Pressure vessel;
- Pipe manufacturing industries
- Wind power fabrication
- Chemical & fuel storage tank fabrication
- Any heavy cylindrical job
Details Control system and Brand
1. Inverter is from Taida/Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
Attention please
1. When finished installation, check whether tight firmware of each port loosens to move the phenomenon or not, if have, please tighten them immediately.
2. Before the usage check the machine and clear some bar the on board ,the rubber roller can not get in touch with oil, and keep off the heat possibly.These will prevent gum the gum roller to aging.
3. We will supply you all the detail work manul for your reference.
