Product Description:
1. Voltage : 110V - 600 V.
2. Control Way : Hand control box.
3. Cutting Way : Automatic welding

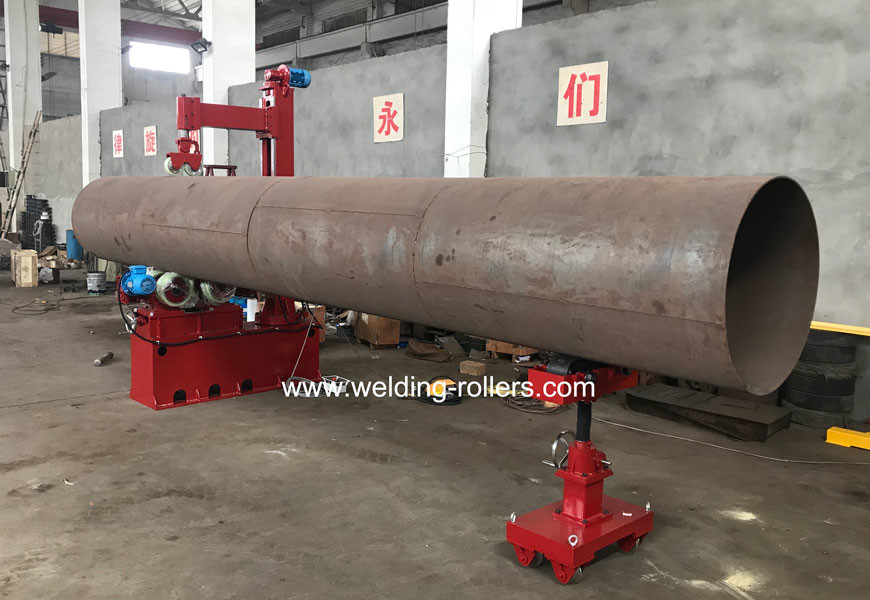

4. Welding positioner clamp the pipe for turning and welding.
5. Welding arm hold the welding gun for automatic welding.
6. Customer can adjust the welding gun within 10 mm via hand control box.
Features:
1. Special design welding turning roller will support under the pipe.
2. Welding guns on the arm for automatic welding.
3. Seam tracker available for adjust the seam welding.
Technical Parameters:
| Model | CW-1000 | CW-1500 | CW-2000 | CW-3000 | CW-5000 |
| Welding/Cutting Length(mm) | 1000 | 1500 | 2000 | 3000 | 5000 |
| Min.Cylinder Diameter (mm) | 50-600 mm |
| Welding / Cutting Way | □ TIG/MIG Welding source □ Flame/Plasma Cutting |
| Rotation Speed (mm/min) | 0.125-2.5 | 0.075-1.5 | 0.075-1.5 | 0.05-1 | 0.05-1 |
| Speed Control Way | Various Frequency Drive |
| Clamps Way | □ Pneumatic ☑ Welding Chuck |
| Option | Welding / Cutting Length can up to 9000mm. |
| Color | Customized |
| Warranty | 1 Year |
Applications:
1. Pressure vessel;
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
Support and Services: 1. We provide 12month guaranty period for the whole machine quality.
2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
Packing and Shipping:
1.All package in wooden case for delivery to avoid damage.
2.Seaway is the most common transportation way for oversea trading.
3. Depends on your location, combined transport by rail and sea is also an option.
4. Certainly railway transportation is also acceptable if it is the most suitable approach.
FAQ:
- Q: What is the brand name for the Pipe Welding Rotator?
A: The brand name for the Pipe Welding Rotator is Weldsuccess.
- Q: Where is the Pipe Welding Rotator manufactured?
A: The Pipe Welding Rotator is manufactured in China.
- Q: What certifications does the Pipe Welding Rotator have?
A: The Pipe Welding Rotator has ISO/CE/CO certification.
- Q: What is the minimum order quantity for the Pipe Welding Rotator?
A: The minimum order quantity for the Pipe Welding Rotator is 1 set.
- Q: How is the Pipe Welding Rotator packaged?
A: The Pipe Welding Rotator is packaged in a wooden case.
